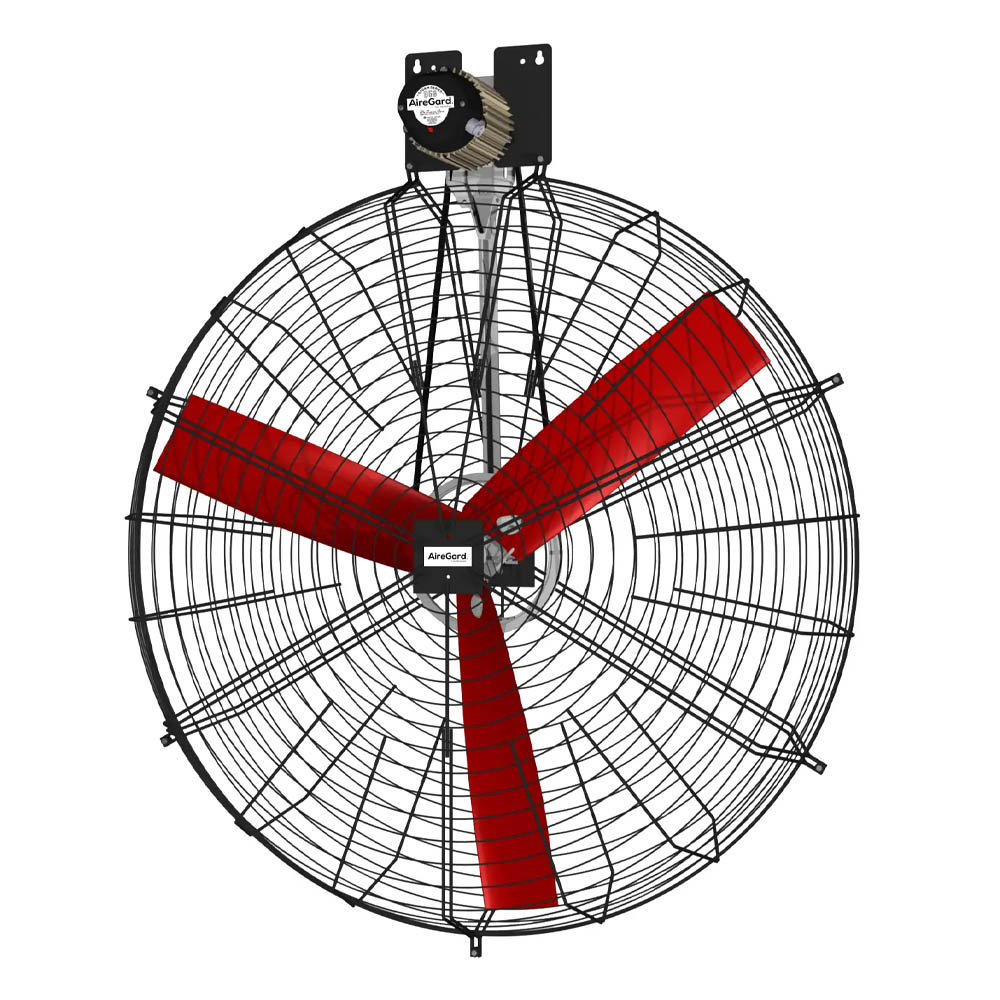

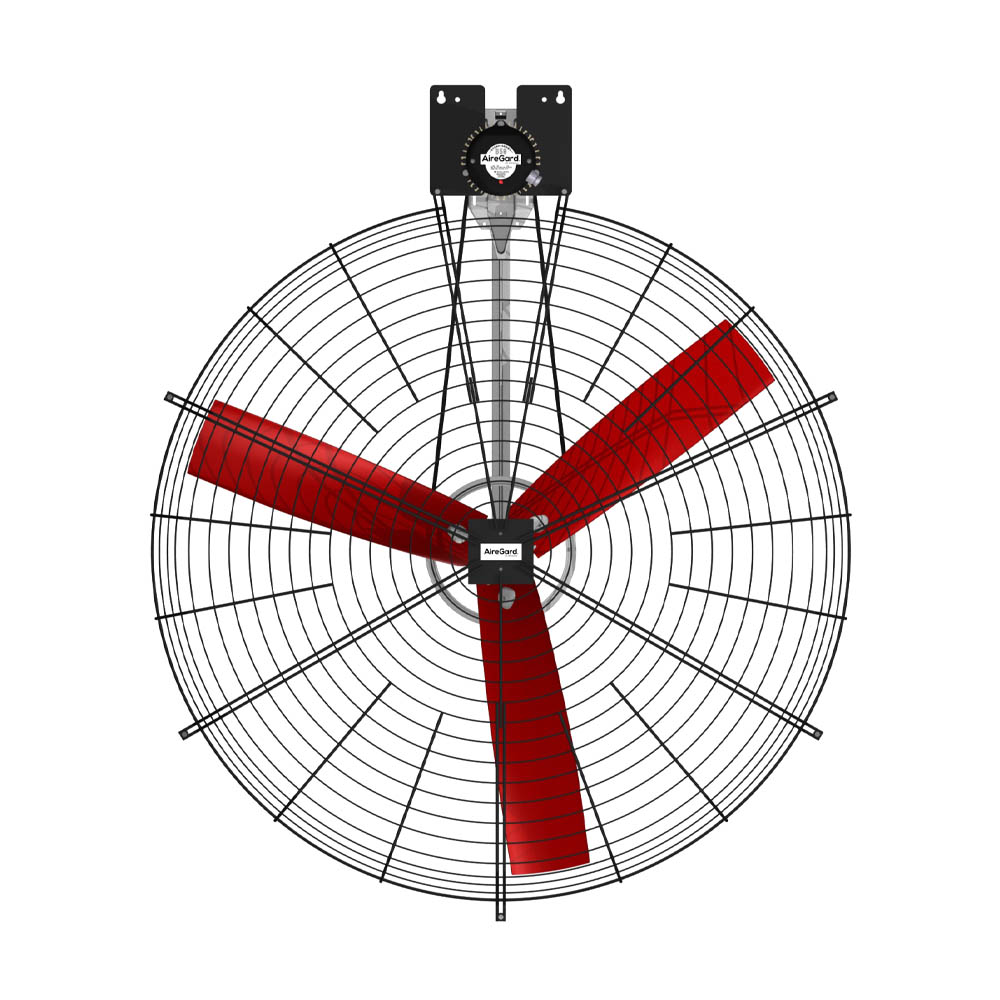

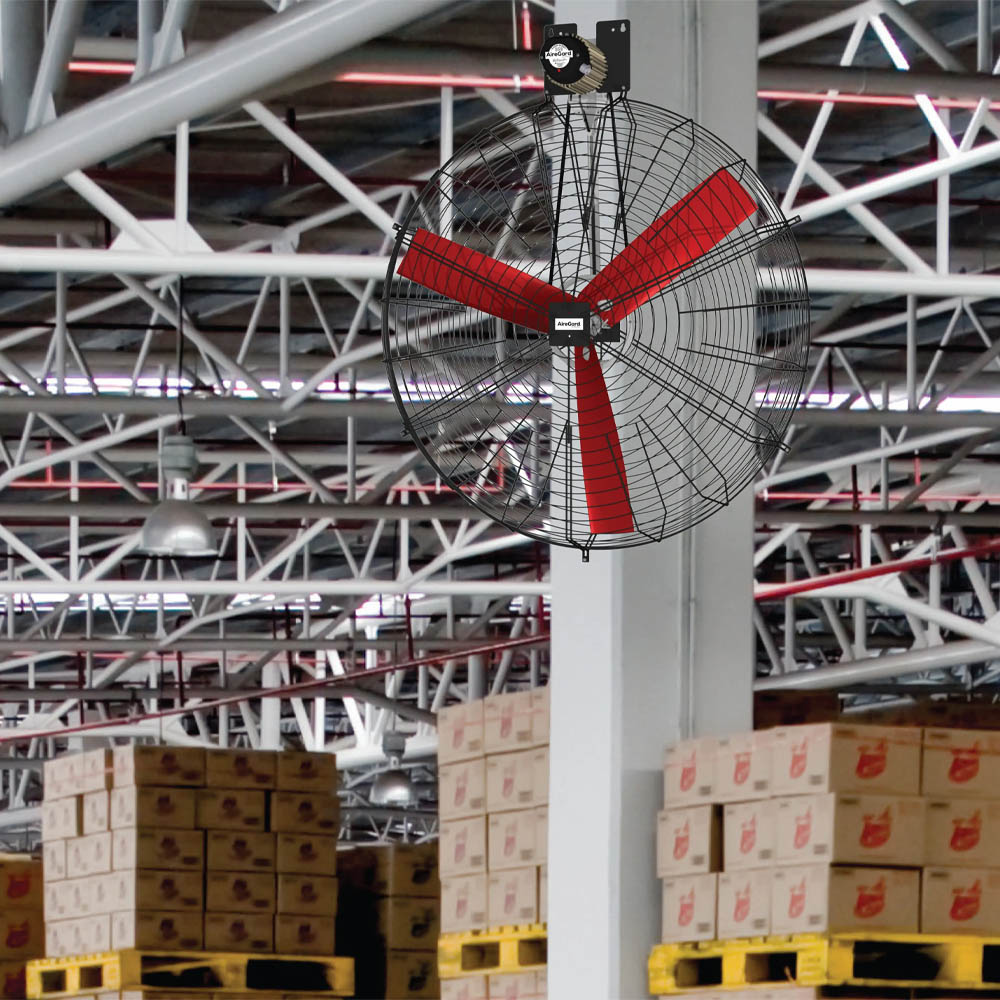

Storm Series Basket Fans are developed and tested in Europe. It utilizes heavy-duty industrial components and an efficient and powerful motor to eliminate uncomfortable working conditions. Mount it to a wall or column and send air to exactly where it’s needed. Thoroughly developed and tested in Europe, our basket fan will stand up to the most rigorous of industrial environments. These fans can be used in various building structures, are characterized by a high throw and are known for its reliability and durability. By using Storm Series Basket Fans, the working environment can be improved and the fans can operate optimally under heavy, corrosive or humid conditions.
Advantages of Storm Series Basket Fans :
- Significantly reduce “heart stress” for employees.
- Improve productivity.
- Improved air circulation and distribution.
- Easy to install.
- Low maintenance.
|
Ø mm |
Model |
Frequency (Hz) |
Voltage (V) |
I (A) |
P (W) |
SFP (W / 1000 m³ / h) |
Controllability* |
Motor Protection Switch (A) |
Lр ** dB (A) |
Q (m³ / h) *** |
Jet **** |
|
500 |
B20 |
50 |
230 |
1.4 |
290 |
41.1 |
E/T |
1,7 |
58 |
7050 |
67 |
|
630 |
B24 |
50 |
230 |
2.1 |
420 |
44.9 |
E/T |
2,5 |
58 |
9350 |
71 |
|
710 |
B28 |
50 |
230 |
2.6 |
530 |
39.8 |
E/T |
3,1 |
59 |
13300 |
91 |
|
1300 |
B50 1P |
50 |
230 |
5.3 |
1100 |
23.8 |
– |
7,3 |
67 |
46300 |
141 |
|
1300 |
B50 3P |
50 |
230 / 400 |
2.5 / 1.4 |
630 |
15.7 |
– |
7,3 |
67 |
40100 |
141 |
(*) Controllable Electronically (E) or by Transformer (T).
(**) Sound pressure level measure at 7 m. free blowing distance.
(***) Electrical and air technical data are based on measurement with CE shutters; measurements are performed according to AMCA 230-99.
(****) Jet is the distance at which the peak velocity has fallen to 0,5 m/s (measure in an infinite without obstructions).
Climate
Circulation of cool air to improve the working CLIMATE.
Refresh
In combination with air extraction fans in order to REFRESH the air constantly and remove warm air.
Water Resistant
Rate IP55.
Fumes
Clear and remove excessive FUMES.
Overview
Storm Series Basket Fans are developed and tested in Europe. It utilizes heavy-duty industrial components and an efficient and powerful motor to eliminate uncomfortable working conditions. Mount it to a wall or column and send air to exactly where it’s needed. Thoroughly developed and tested in Europe, our basket fan will stand up to the most rigorous of industrial environments. These fans can be used in various building structures, are characterized by a high throw and are known for its reliability and durability. By using Storm Series Basket Fans, the working environment can be improved and the fans can operate optimally under heavy, corrosive or humid conditions.
Advantages of Storm Series Basket Fans :
- Significantly reduce “heart stress” for employees.
- Improve productivity.
- Improved air circulation and distribution.
- Easy to install.
- Low maintenance.
Specification
|
Ø mm |
Model |
Frequency (Hz) |
Voltage (V) |
I (A) |
P (W) |
SFP (W / 1000 m³ / h) |
Controllability* |
Motor Protection Switch (A) |
Lр ** dB (A) |
Q (m³ / h) *** |
Jet **** |
|
500 |
B20 |
50 |
230 |
1.4 |
290 |
41.1 |
E/T |
1,7 |
58 |
7050 |
67 |
|
630 |
B24 |
50 |
230 |
2.1 |
420 |
44.9 |
E/T |
2,5 |
58 |
9350 |
71 |
|
710 |
B28 |
50 |
230 |
2.6 |
530 |
39.8 |
E/T |
3,1 |
59 |
13300 |
91 |
|
1300 |
B50 1P |
50 |
230 |
5.3 |
1100 |
23.8 |
– |
7,3 |
67 |
46300 |
141 |
|
1300 |
B50 3P |
50 |
230 / 400 |
2.5 / 1.4 |
630 |
15.7 |
– |
7,3 |
67 |
40100 |
141 |
(*) Controllable Electronically (E) or by Transformer (T).
(**) Sound pressure level measure at 7 m. free blowing distance.
(***) Electrical and air technical data are based on measurement with CE shutters; measurements are performed according to AMCA 230-99.
(****) Jet is the distance at which the peak velocity has fallen to 0,5 m/s (measure in an infinite without obstructions).
Brochure Download
Download PDFKey Features
Climate
Circulation of cool air to improve the working CLIMATE.
Refresh
In combination with air extraction fans in order to REFRESH the air constantly and remove warm air.
Water Resistant
Rate IP55.
Fumes
Clear and remove excessive FUMES.
