Benefits:
- Industrial ventilation, product solution for personal cooling.
- Energy saving up to 90%, compared to conventional solution.
- Maximum air volume.
- Maximum coverage area.
- Comfortable and gentle with natural breeze simulation.
|
Model |
PXP-12 |
PXP-16 |
PXP-20 |
PXP-24 |
||||||
|
Blade Diameter |
12 ft (3.7 m) |
16 ft (5 m) |
20 ft (6.1 m) |
24 ft (7.3 m) |
||||||
|
Blade Style |
Aerofoil with winglet |
|||||||||
|
Blade Material |
Magnalium (Aluminium Alloy), Carbon Fluorine Treated Surface |
|||||||||
|
Number of Blades |
5 |
6 |
||||||||
|
Performance & Power |
||||||||||
|
Max. Displacement |
176,573 CFM |
353,147 CFM |
406,119 CFM |
458,823 CFM |
||||||
|
Variable Speed |
100 RPM |
80 RPM |
65 RPM |
55 RPM |
||||||
|
Max. Power Usage |
0.37 kW |
0.75 kW |
1.1 kW |
1.1 kW |
||||||
|
Rated Current (Max) |
1.9 Amps |
3.2 Amps |
6 Amps |
6 Amps |
||||||
|
Input Voltage |
220 – 240 V/1P |
|||||||||
|
Weight & Dimensions |
||||||||||
|
Weight (Motor / Fan) |
38 kg |
51 kg |
83 kg |
112 kg |
||||||
|
Motor |
||||||||||
|
Motor Type |
NeoDrive Permanent Magnet Synchronous Motor |
|||||||||
|
Drive Train |
Direct Drive Gearless |
|||||||||
|
Max. Torque |
42 Nm |
110 Nm |
162 Nm |
191 Nm |
||||||
|
Mechanical Efficiency |
Direct drive rotation, efficiency ≥ 0.96 % |
|||||||||
|
Max. Ambient Temperature for Operation |
80 |
|||||||||
|
Degree of Protection |
IP65 |
|||||||||
|
Cooling System |
Natural Cooling |
|||||||||
|
Sound Level |
≤ 38 dBA |
|||||||||
|

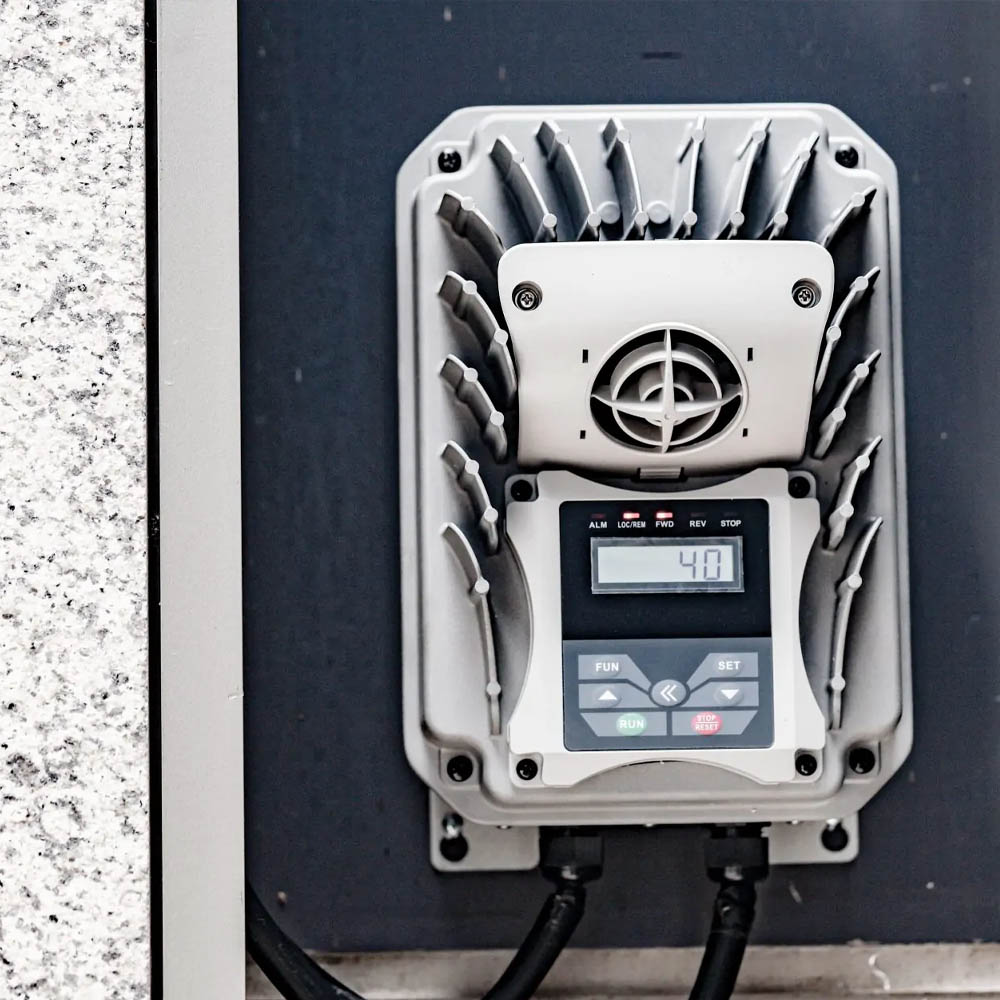

Controls |
||||||||||
|
Control Type |
Variable Frequency Drive (Inverter Drive) |
|||||||||
|
Features |
Rugged construction, all metal enclosure, IP66 protection class |
|||||||||
|
Manufacturer |
EURA Drives Germany |
|||||||||
|
Max. Ambient Temperature for Operation |
-10 to 40 |
|||||||||
|
Warranty |
||||||||||
|
Warranty |
5 Years ** |
|||||||||
|
** Subject to Terms & Conditions. |
||||||||||

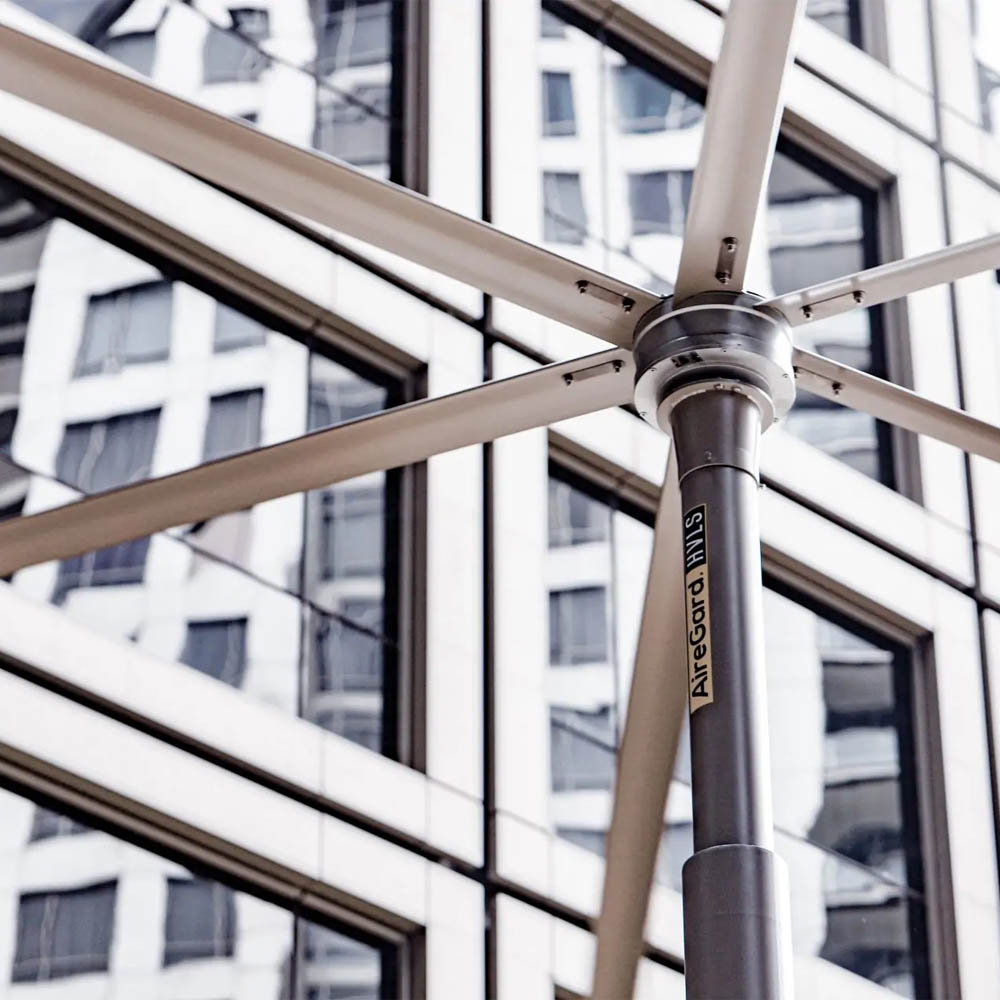

AireGard NeoDrive PMSM (Direct Drive Motor System)
AireGard’s NeoDrive direct drive unit offers more airflow, torque, efficiency and durability. With only 2 moving parts, sound level is further reduced by up to 50% compared to conventional gearbox unit.
Excellent Coverage (3-Dimensional Air Comfort)
The PXP series delivers a maximum effective coverage area of 1000 m2 and beyond.
Ultra Silent Comfort (Silent Operation)
The PXP provides a pleasant environment with its ultra-silent operation as 38 dB, bringing a breezy comfort to the surroundings.
Aerofoil Winglet (Boost Airflow and Drag Reduction)
A winglet is attached to a distal end of the aerofoils to reduce drag and improve downward lift, creating up to 40% more air than most of our competitors.
Aerofoil Blades (Generating High Air Circulation)
Our areofil blades are made of aviation grade magnalium (Aluminum alloy) and finished in fluorocarbon coating to withstand the toughest environment. It’s unique patented design structure is further strengthened with 3 vertical stiffeners within the length of each blade to avoid structural fatigue.
Overview
Benefits:
- Industrial ventilation, product solution for personal cooling.
- Energy saving up to 90%, compared to conventional solution.
- Maximum air volume.
- Maximum coverage area.
- Comfortable and gentle with natural breeze simulation.
Specification
|
Model |
PXP-12 |
PXP-16 |
PXP-20 |
PXP-24 |
||||||
|
Blade Diameter |
12 ft (3.7 m) |
16 ft (5 m) |
20 ft (6.1 m) |
24 ft (7.3 m) |
||||||
|
Blade Style |
Aerofoil with winglet |
|||||||||
|
Blade Material |
Magnalium (Aluminium Alloy), Carbon Fluorine Treated Surface |
|||||||||
|
Number of Blades |
5 |
6 |
||||||||
|
Performance & Power |
||||||||||
|
Max. Displacement |
176,573 CFM |
353,147 CFM |
406,119 CFM |
458,823 CFM |
||||||
|
Variable Speed |
100 RPM |
80 RPM |
65 RPM |
55 RPM |
||||||
|
Max. Power Usage |
0.37 kW |
0.75 kW |
1.1 kW |
1.1 kW |
||||||
|
Rated Current (Max) |
1.9 Amps |
3.2 Amps |
6 Amps |
6 Amps |
||||||
|
Input Voltage |
220 – 240 V/1P |
|||||||||
|
Weight & Dimensions |
||||||||||
|
Weight (Motor / Fan) |
38 kg |
51 kg |
83 kg |
112 kg |
||||||
|
Motor |
||||||||||
|
Motor Type |
NeoDrive Permanent Magnet Synchronous Motor |
|||||||||
|
Drive Train |
Direct Drive Gearless |
|||||||||
|
Max. Torque |
42 Nm |
110 Nm |
162 Nm |
191 Nm |
||||||
|
Mechanical Efficiency |
Direct drive rotation, efficiency ≥ 0.96 % |
|||||||||
|
Max. Ambient Temperature for Operation |
80 |
|||||||||
|
Degree of Protection |
IP65 |
|||||||||
|
Cooling System |
Natural Cooling |
|||||||||
|
Sound Level |
≤ 38 dBA |
|||||||||
|
Controls |
||||||||||
|
Control Type |
Variable Frequency Drive (Inverter Drive) |
|||||||||
|
Features |
Rugged construction, all metal enclosure, IP66 protection class |
|||||||||
|
Manufacturer |
EURA Drives Germany |
|||||||||
|
Max. Ambient Temperature for Operation |
-10 to 40 |
|||||||||
|
Warranty |
||||||||||
|
Warranty |
5 Years ** |
|||||||||
|
** Subject to Terms & Conditions. |
||||||||||
Brochure Download
Download PDFKey Features
AireGard NeoDrive PMSM (Direct Drive Motor System)
AireGard’s NeoDrive direct drive unit offers more airflow, torque, efficiency and durability. With only 2 moving parts, sound level is further reduced by up to 50% compared to conventional gearbox unit.
Excellent Coverage (3-Dimensional Air Comfort)
The PXP series delivers a maximum effective coverage area of 1000 m2 and beyond.
Ultra Silent Comfort (Silent Operation)
The PXP provides a pleasant environment with its ultra-silent operation as 38 dB, bringing a breezy comfort to the surroundings.
Aerofoil Winglet (Boost Airflow and Drag Reduction)
A winglet is attached to a distal end of the aerofoils to reduce drag and improve downward lift, creating up to 40% more air than most of our competitors.
Aerofoil Blades (Generating High Air Circulation)
Our areofil blades are made of aviation grade magnalium (Aluminum alloy) and finished in fluorocarbon coating to withstand the toughest environment. It’s unique patented design structure is further strengthened with 3 vertical stiffeners within the length of each blade to avoid structural fatigue.
